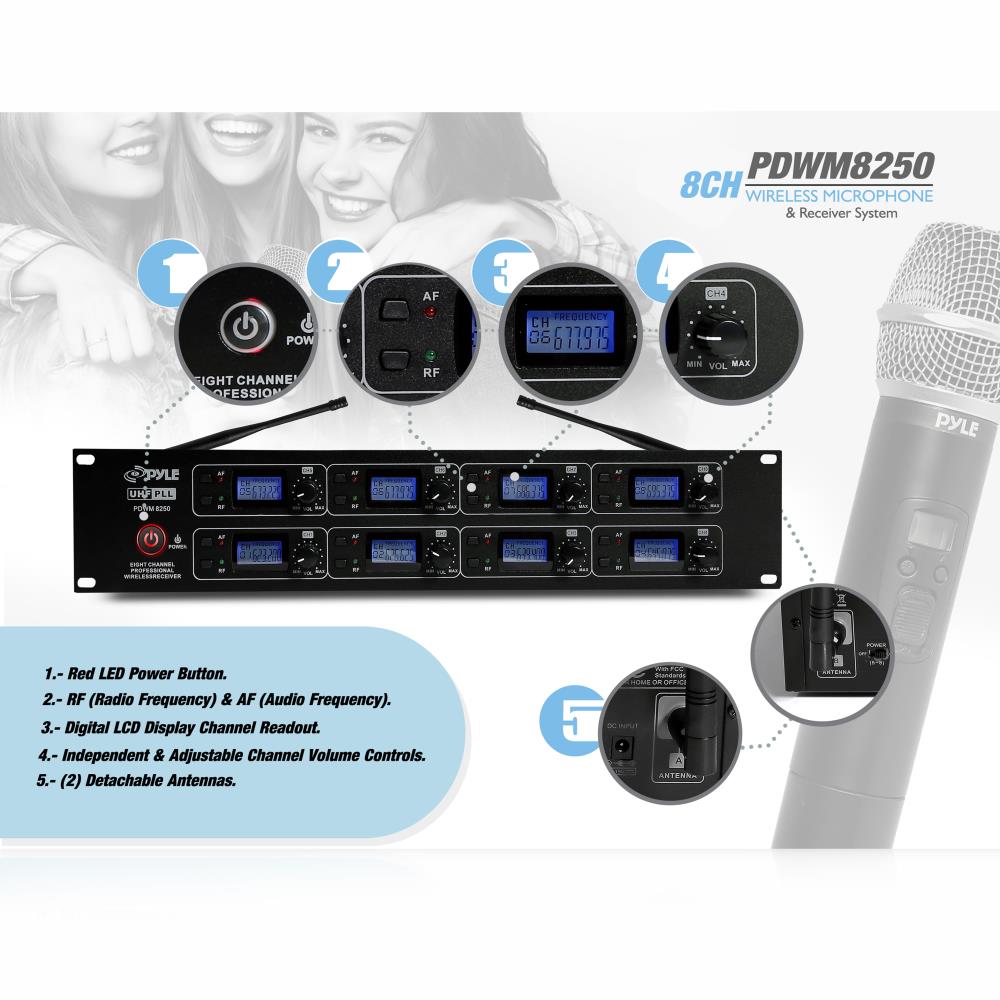

Digital LCD Display with Channel & Frequency Readout
Wireless Operation Range: Up to 164 ft.
LED Audio Signal Indicator Lights
RF (Radio Frequency) & AF (Audio Frequency)

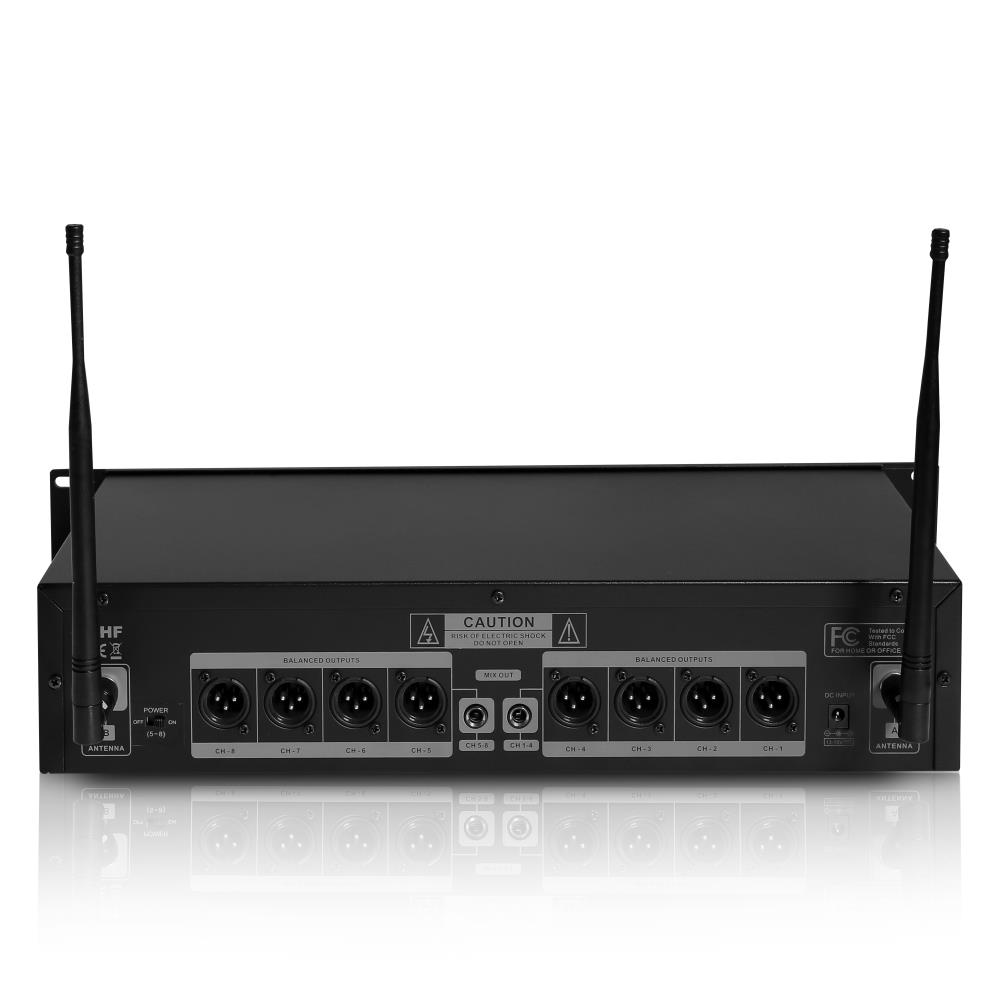

(8) XLR Balanced Output Jacks
(2) 1/4’’ Mixed Outputs
Rack Mountable

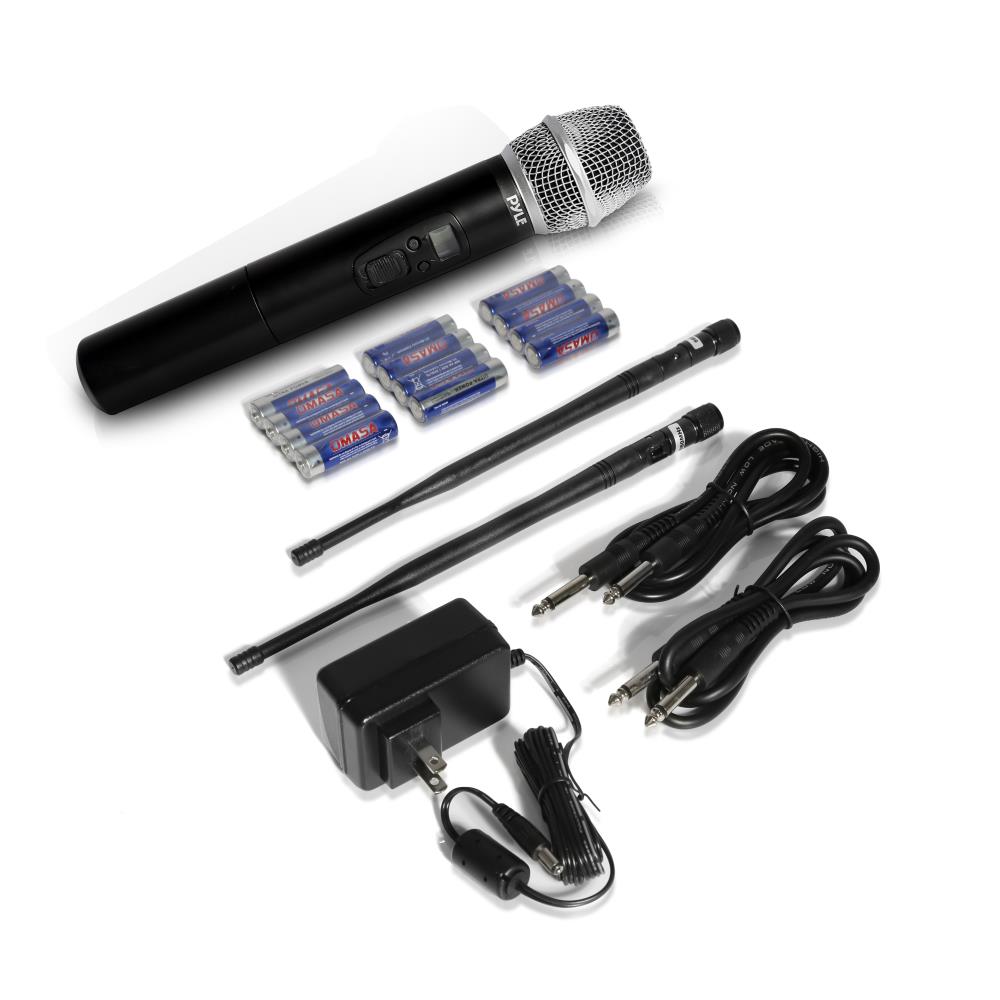

What’s in the Box:
System Receiver
(8) Wireless Handheld Microphones
(2) Detachable Antennas
(2) 1/4" Audio Cable
(16) 1.5V x 'AA' Batteries
Power Adapter
Receiver Specifications:
Digital LCD Display Channel Readout
Image & Spurious Rejection: >70 dB
Receiving Sensitivity: -105 dB
Signal / Noise Ratio: -105dB
Border Upon Channel Rejection: > 70 dB
Audio Output Level: 0-300 mV
Power Requirements: 13-15V DC nominal 1500 mA
T.H.D.: < 1%
ON/OFF Switch
Power Supply: 110/220V (13-15V Power Adapter)
Receiver Dimensions (L x W x H): 18.9'' x 7.8'' x 3.9''
Handheld Microphone Specifications:
Includes (8) Microphones
Digital LCD Display Channel Readout
RF Output: >10 dBm
Modulation Type: FM
Max Deviation: ± 40 kHz
Spurious Emission: > 55 dBc
Nominal Current Drain: < 100mA
ON/OFF/MUTE Switch
Battery Operated Mics, Requires (2) x ‘AA’ Batteries (-Each)
Mic Dimensions (L x W x H): 9.8'' x 2.0'' x 2.0''

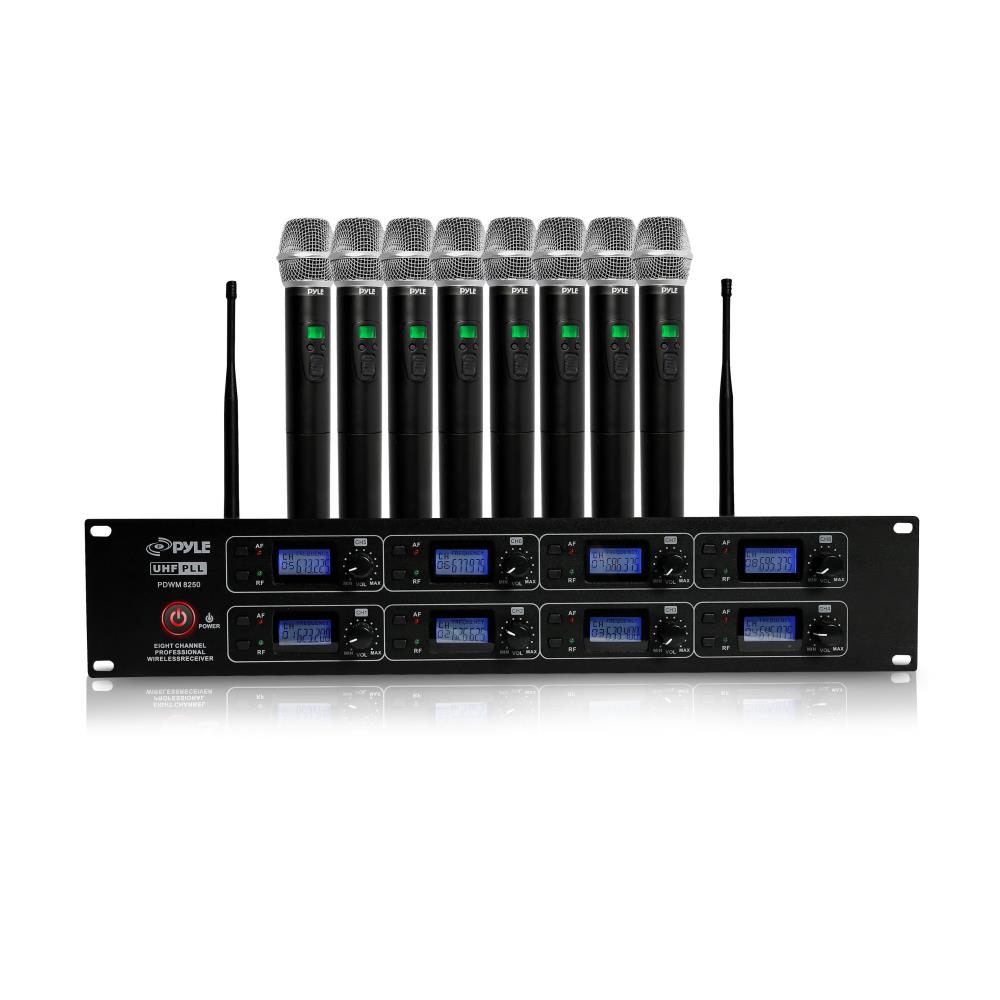

The Pyle 8-Channel Wireless Microphone Systems provide wide area coverage ranges with simple controls and hassle-free operation. Wireless UHF signal audio transmission allows for distortion free and crisp vocal audio performance for all of your microphone needs. System base receiver features independent adjustable channel volume controls, digital LCD displays with frequency read-out, along with LED audio signal indicators. Additional system features include (8) XLR balanced output jacks, (2) 1/4’’ mixed output connectors and integrated mounting brackets for rack mount compatibility. Enjoy easy-to-use and crisp audio performance with the Pyle 8-Channel Wireless Microphone Systems.
;)
;)
;)
;)
;)
;)
